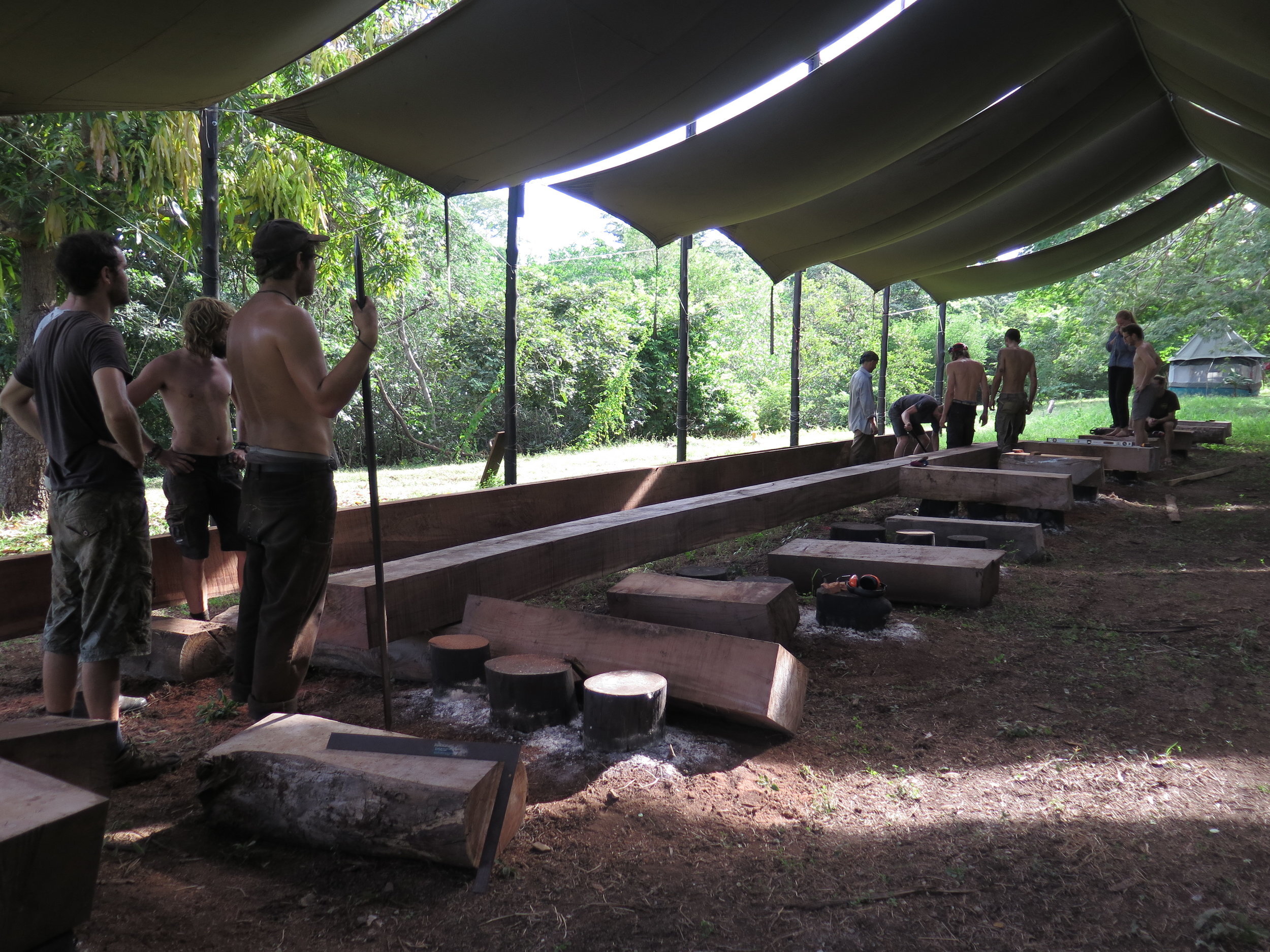

Getting the keel ready to be dry-fitted on the keel blocks back in late 2018.

Getting the keel ready to be dry-fitted on the keel blocks back in late 2018.

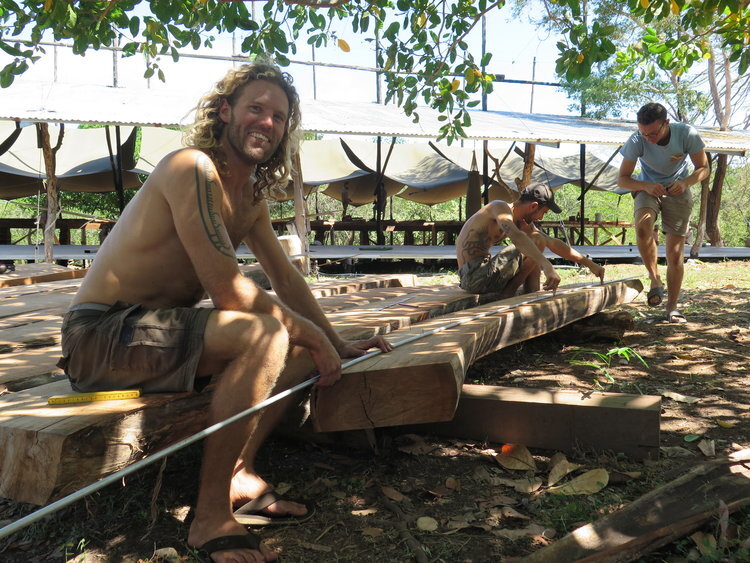

Luuk & Gero sawing the keel scarf joint as Joseph eyes the line.

Luuk & Gero sawing the keel scarf joint as Joseph eyes the line.

Cutting the keel - Luuk, Gero & Artur.

Cutting the keel - Luuk, Gero & Artur.

Shipwrights gathering
From many countries
Mangrove shipyard

Keel is laid
Exciting these days
Ceiba begun

The birth of a ship
SAILCARGO happening
Vessel will sail

Gero, Luuk & Silas work together to smoothly cut the keel scarf-joint.

Gero, Luuk & Silas work together to smoothly cut the keel scarf-joint.

“Start your day with a haiku!”

I’m sure those words have been spoken by an elderly wise Japanese person once or twice in the history of humankind, but I sure don’t know who it would have been. Neither can I say that it is something I have ever done myself; I've neither written a haiku nor a blog before.

But there is a first time for everything, like for example, building and laying the keel of a ship. In this case, Ceiba, the first build of the Ceiba Maritima shipyard and SAILCARGO INC. and the star of the future fleet of cargo carrying sailing ships that are planned to come out of this enterprise. All this, I’m sure you already know, so I won’t bore you with more about that part.

I will, on the other hand, bore you with some of the details in the process behind reaching this milestone. For even though I have never built or layed a keel of these dimensions before - thereby also doing this for the first time - this is what I do. I am a Danish shipwright/boatbuilder by trade and part of the team here in Costa Rica.

Long drill bit on the keel.

Long drill bit on the keel.

For even though I have never built or layed a keel of these dimensions before - thereby also doing this for the first time - this is what I do.
— Silas Bucher

That will have to do for an introduction. Now I’ll take you through the keel, the first part of the actual ship.

Tightening the keel bolts with a wrench. Photo by Finn Richardson.

Tightening the keel bolts with a wrench. Photo by Finn Richardson.

We started with massive trunks of ‘Tamarindo del Monte’ that our chainsaw team had shaped into 4 big beam timbers. They were passed on to me, Joseph - a French shipwright - and Artur from Poland. Artur spent a few days planing and squaring them all up while Joseph, Lynx and I were going over the plans and the lofting floor, measuring up, drawing and agreeing on how and where we were going to join the pieces. We had to be careful to not place them too close to any of the many other things going on or through the keel at a later stage. Frames, frame bolts, keelson bolts, keel bolts… so many things.


We scarf them, a scarf being a way of joining timber into one piece keeping as much strength as possible and putting coaxes into the scarf. Coaxes, also known as shear keys, are small wooden blocks that are fitted into the scarf to prevent any sideways movement that would put a lot of tension on the scarf bolts… Okay, done. Now we just have to actually do it on the wood itself.

Coaxes, also known as shear keys, are small wooden blocks that are fitted into the scarph to prevent any sideways movement that would put a lot of tension on the scarf bolts…
— Silas Bucher

The team at the shipyard is joined by Gary, a Canadian/American boatbuilder who will be here for a couple of months. Gary comes bringing gifts; specific tools we need to continue the works, a router, for cutting the coax holes and making 'dutchmen' on all the worst cracked up and broken parts in the wood. A 'dutchman' is when you cut out bad wood and fit in a new piece of healthy wood. The name maybe coming from all Dutchmen being bad… or healthy… not for me to decide! Anyways, Gary also brings the power drill and big long drill bits that we need to drill the bolt holes. The work can continue and it does by measuring out for the scarph bolts. Gary has taken over for Joseph working with me on the keel and we get the first holes drilled and the scarph dry fitted with the bolts in. The drill is passed on and we start routing and chiseling out for the coaxes. It has to be precise, since the coaxes need to all fit in between two pieces of wood that need to line up perfectly with the bolt holes and the rest of the scarf.

A ‘dutchman’ is when you cut out bad wood and fit in a new piece of healthy wood. The name maybe coming from all Dutchmen being bad… or healthy… not for me to decide!
— Silas Bucher

With all coaxes fitted and holes drilled, the keel is almost done. We make our dutchmen and fill cracks with roofing tar to keep the water out. We are ready. But alas, we can’t lay it yet.

Keel blocks have to be stacked and leveled and staging has to be made to support the keel when we lift it up and join it.

Coaxes in their slots ready to be put into dry-fit. Photo by Finn Richardson.

Coaxes in their slots ready to be put into dry-fit. Photo by Finn Richardson.

It has to be precise, since the coaxes need to all fit in between two pieces of wood that need to line up perfectly with the bolt holes and the rest of the scarf.
— Silas Bucher

In between this, Christmas and New Years happens, the shipyard goes into holiday mode and most of the crew are out exploring the country we are all now living and working in. January comes and the 8th is nearing. Work starts up again and we build the staging. Half of the team have been up in the mountains cutting down wood for this to happen. I’m at the yard finishing everything off and then, Friday the 4th, Lynx calls from the mountains and asks if we can be ready the following Monday for the tractor to come lift the keel up. This is it. This means we’re finally laying the keel. We could potentially be ready for Monday, but we decide on doing it Tuesday in order to have the whole day to lay it.

Tuesday, January 8th 2019

This is the day. The day we’ve all been waiting and working for. The first shape of Ceiba, the birth of the ship. The keel.

Silas goes to sledgehammer the keel in place, in dry fit, to bring it tightly and exactly together.

Silas goes to sledgehammer the keel in place, in dry fit, to bring it tightly and exactly together.

This is the day. The day we’ve all been waiting and working for. The first shape of ‘Ceiba’, the birth of the ship. The keel.
— Silas Bucher
Lynx with the “Comedy Mallet”. Photo by Finn Richardson.

Lynx with the “Comedy Mallet”. Photo by Finn Richardson.

The tractor comes in the morning, everybody joins in helping and watching as the keel pieces, one by one get lifted up on the keel blocks and the staging, ready for us to move them into position and join them. That’s what we do. Back to manhandling the keel pieces, but this time, it will be the last and final time we’ll have to do it. Sledgehammers, ropes, chain hoists, wrecking bars. Move them close, line them up. We fill the scarphs with tar, put in the coax blocks, tar them up as well. Make sure the tar will squeeze out, lift the top scarph piece, move it over the bottom one and bash the end with our giant mallet, named the ‘Comedy Mallet’, for its appearance, and be satisfied as you watch the whole thing slide into place. The coaxes going into the coax holes perfectly, ratchet straps on, tar oozing out sealing the joints. And finally, first bolt going in, all bolts being first wound up with natural fibres and covered in tar, again to ensure a tight seal. Hammer it in and get the washer and the nut on the other end. Get them tight. It is a good day indeed, Ceiba now has its keel.

On this day, the date that I had bet on for laying the keel, we didn’t actually finish it.

We finished two out of the three scarphs and ran out of tar for the last one, and the local hardware store was out of stock as well. We had to wait until the next day to get any more. Bearing in mind that if we had the tar, we would have laid the whole keel, it was decided that I won the bet anyway. Being the closest one no matter what.

And my prize? Apart from finishing the first step of the build of Ceiba, we hadn’t actually put down any bet or prize. So the “Yardies” all wrote their suggestions on little notes and mixed them in a hat. I was to pull my prize from there without knowing what it would be.

There were many good suggestions, good prizes and fun prizes, but the one I pulled from the hat, the only one of that kind, was a kiss from everyone...



If you are interested in helping us continue to reach our goals with the construction of Ceiba and see this beautiful tallship enter the Pacific on schedule, consider becoming an investor and get in touch with us TODAY - simply click the button below to find out more.

Our project is funded entirely by people like you becoming shareholders through investing. Support the change you wish to see in the world by getting involved with us here @SAILCARGO INC.

info@sailcargo.org

CONTACT US

Together, we can #SeaShippingChange



Haiku og Køl!

Beside his poetic facet, Silas is a talented shipwright that spent more than seven months at AstilleroVerde. As one of the leaders in the team, he took a big part in the success of our first milestone: laying Ceiba’s keel.

Silas cutting the scarfs of the keel.

Silas cutting the scarfs of the keel.

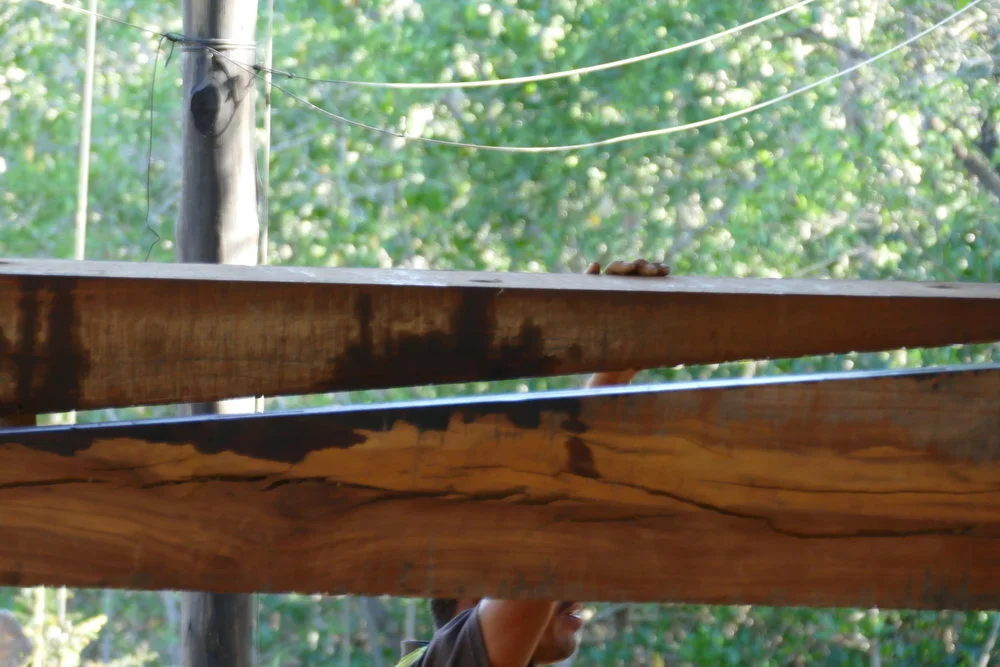

Keel coaxes in dry-fit.
