Adrien was fascinated how the shipyard is independent of industrial intermediaries and how traditional skills are being saved and passed on. He describes how the ancient technique of framing is fading into obscurity, but this rare process is brought back to life here at SAILCARGO.

Here's a high-paced timelapse clip of the construction and raising of Ceiba's second frame. After many days of sawing and shaping under the shade of a nearby Cashew tree, all 12 pieces of the frame were assembled on the staging deck.

The particular nature of this project is sourcing materials without intermediaries. When we saw our frames, this is an essential prerequisite; we are going against the flow of forestry industry customs by keeping natural tree curves while selecting the logs – an unpopular task amongst lumberjackers.

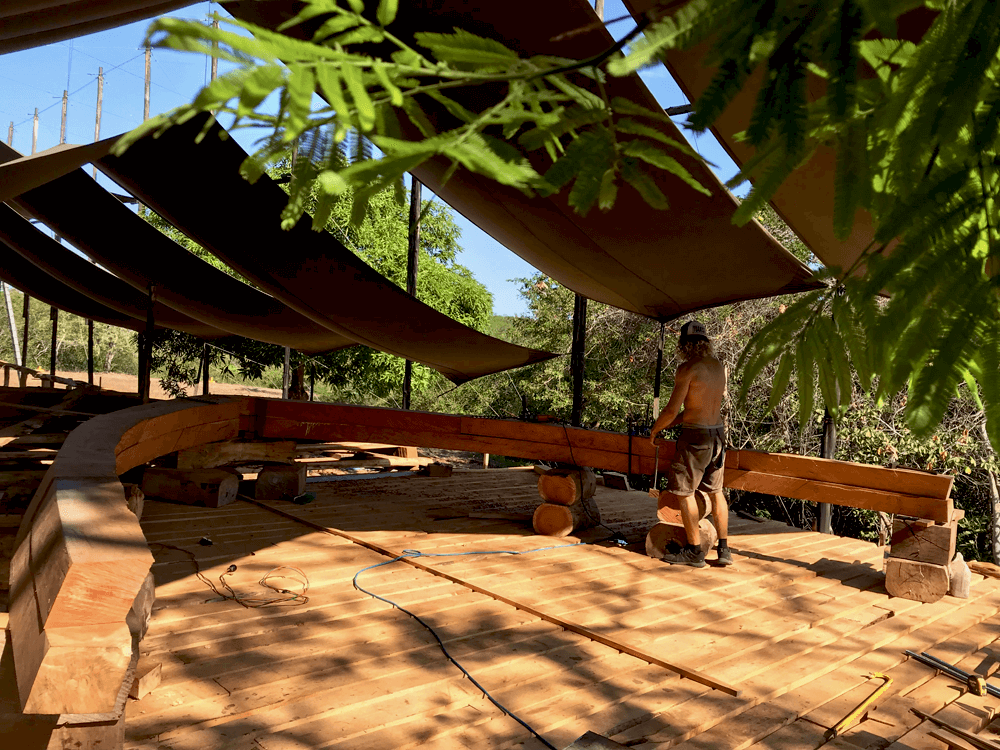

Silas assembling Frame no. 48 upon the framing stage. Photo by Danielle Doggett

When we saw our frames, this is an essential prerequisite; we are going against the flow of forestry industry customs by keeping natural tree curves while selecting the logs – an unpopular task amongst lumberjackers.
— Adrien Carrabin

All around the shipyard, tremendous piles of Spanish Cedar are slowly drying. They've been here for a year, sheltered from rain and sun under sheets of roofing tin shining in the sun. The bulks have a quiet strength, ready to step into the ring. Buckie, our everyday hauling vehicle, has the privilege of waking it up by scattering the first slabs. Then the shipwrights, templates in hands, buckle down to reconstitute the frame puzzle. Knowing that one frame contains a dozen overlapping arcs, it is a fine art of selection.

Knowing that one frame contains a dozen overlapping arcs, it is a fine art of selection.
— Adrien Carrabin

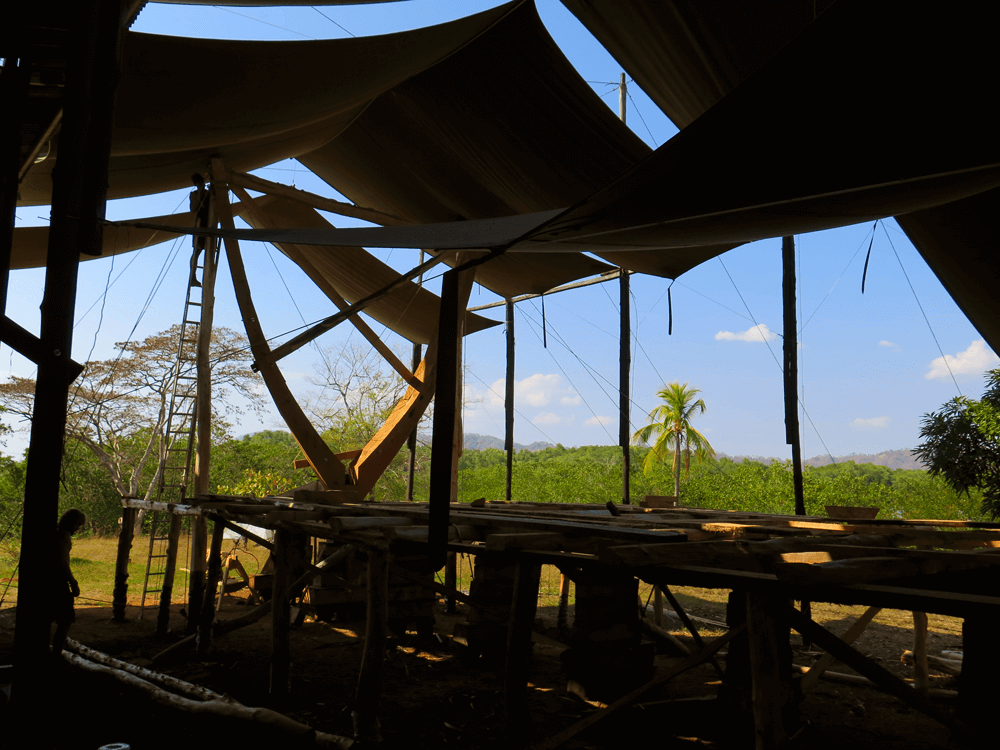

Frame no. 48 beginning to become airborne. Photo by Danielle Doggett

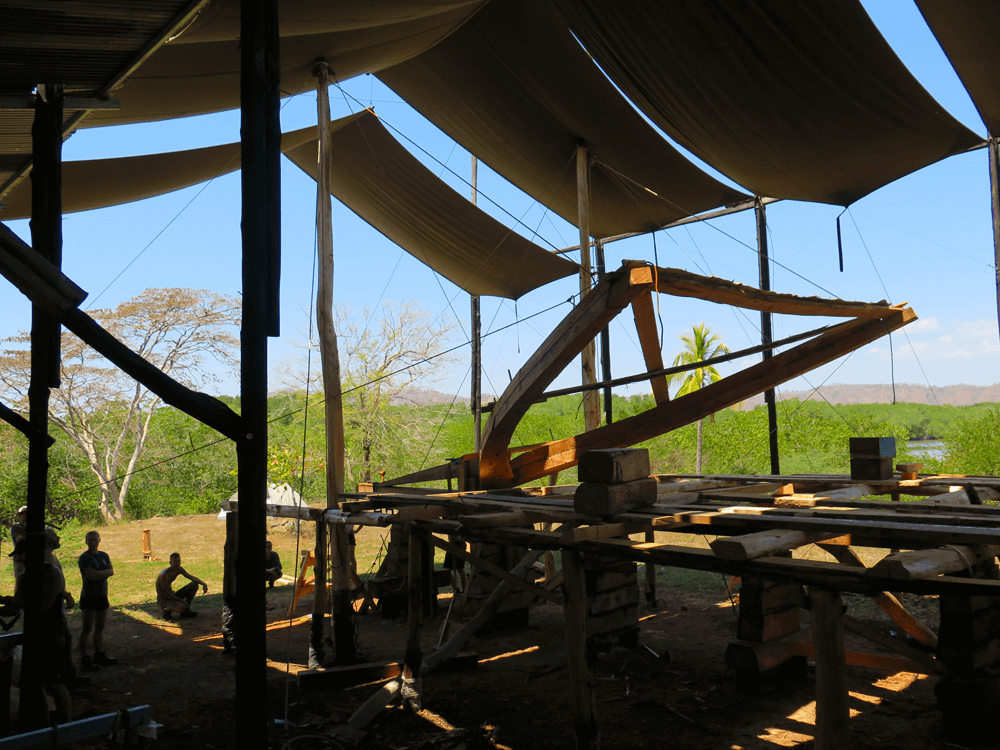

The first frame airborne in the early morning sun at the shipyard. Photo by Danielle Doggett

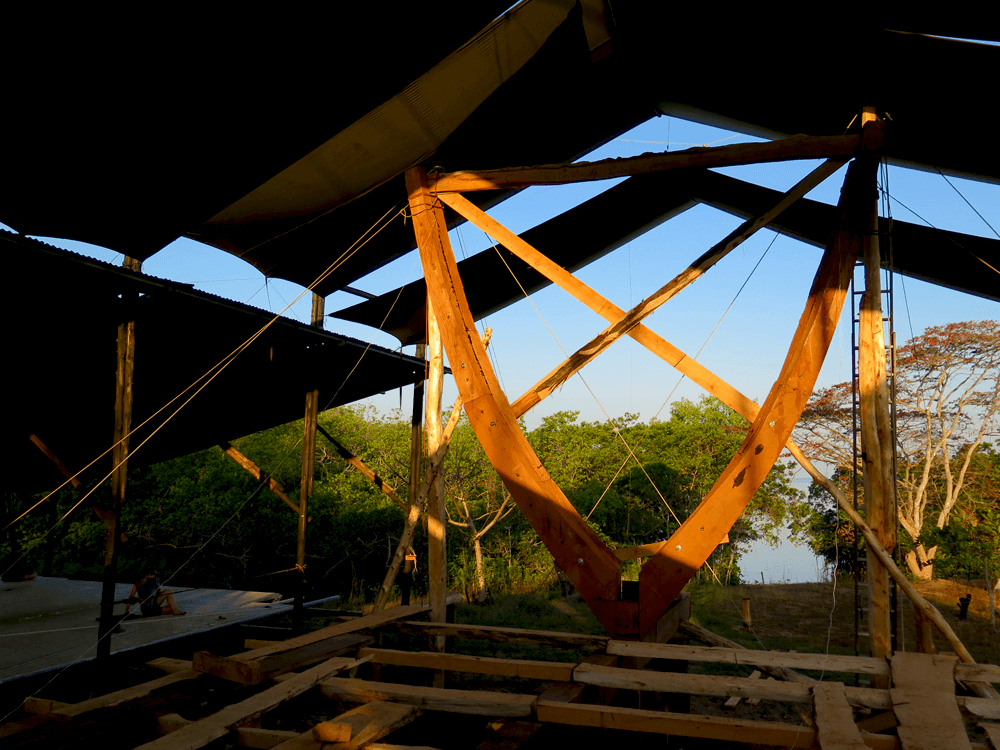

Frame 48 vertical, as it is being fixed to supporting mast-posts. Photo by Danielle Doggett

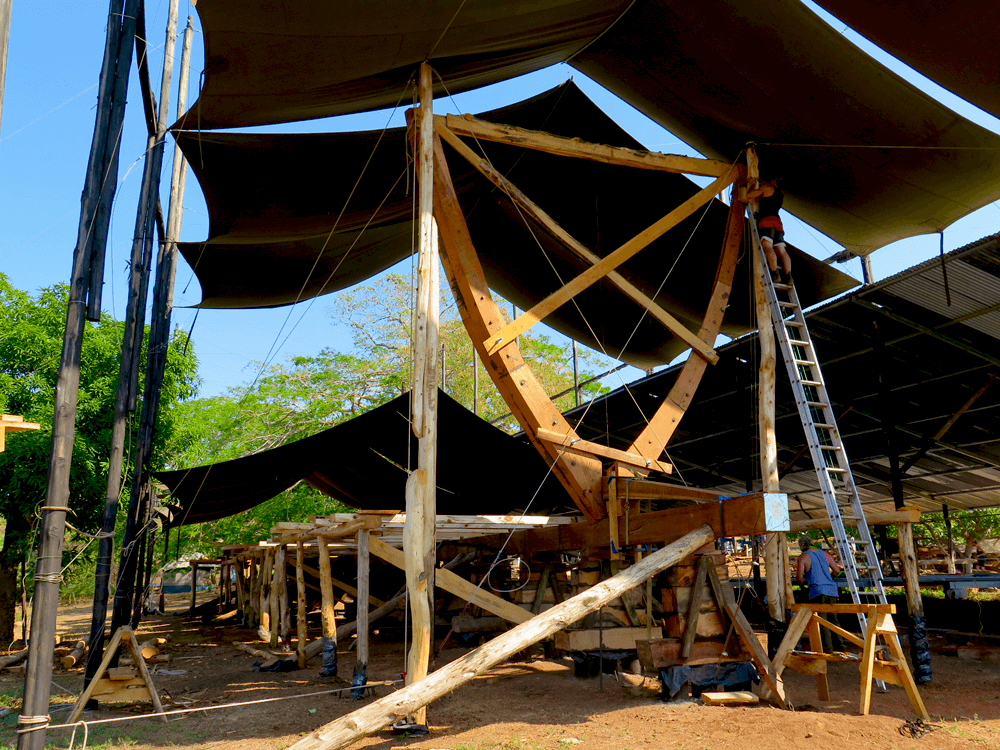

JT high on the ladder, shoring up frame number 48. Photo by Danielle Doggett

A month ago, a 90 year-old Tilting Shipsaw found abandoned in a brownfield site in Victoria, Canada landed at the yard; barely more than a half rusted scraphead. Since then, the four meter high machine stands again in the air. In a few weeks it will join the handful of remaining shipsaws of this type operating in both Americas; a tall order that will allow us to saw the twisted surfaces of the frames with unparelleled efficiency. In short, it will be a nod towards the bygone splendid times of wooden ship building.

In short, it will be a nod towards the bygone splendid times of wooden ship building.
— Adrien Carrabin

Lynx orchestrating the raising of the second frame, number 47. Photo by Danielle Doggett.

Waiting for the valuable machine, the frames are released through chainsaws and refined with planers under the shade of an evergreen tree, one of the few with leaves remaining after three months of perfect dry weather; the Anacarde, which gives an abundance of cashew nuts and fruits. It will provide a cosy shade to saw the frames untill the rainy season. The first sawyers soon raise an outcry against some kind of chemical attack; the repugnant bitter taste of the cedar sawdust, revealing its best defence against termites – an attractive feature for a tropical water wooden ship.

The first sawyers soon raise an outcry against some kind of chemical attack; the repugnant bitter taste of the cedar sawdust, revealing its best defence against termites – an attractive feature for a tropical water wooden ship.
— Adrien Carrabin

Two frames upright and in place. Photo by Danielle Doggett

The 3rd frame of Ceiba being hoisted into place, number 46. Photo by Danielle Doggett

3 frames in place under the tropical sun. Photo by Danielle Doggett

The whole frame will be fused using big wooden trunnels (or tree nails) inserted at different angles through the frames and locked in place with tiny wedges, struck hard at both ends.
— Adrien Carrabin

Then the dozen pieces are sent to the deck, astern above the keel, for the final assembly. The main lines of the frame have been reproduced on the working surface and will enable fine adjustment of the different curves. Beforehand, every internal face will be carefully spread with the fiendishly sticky tar to avoid any future water infiltration; a true Damocles Sword for any wooden hull. The whole frame will be fused using big wooden trunnels (or tree nails) inserted at different angles through the frames and locked in place with tiny wedges, struck hard at both ends. Soon after, the frame will be hoisted into the air.

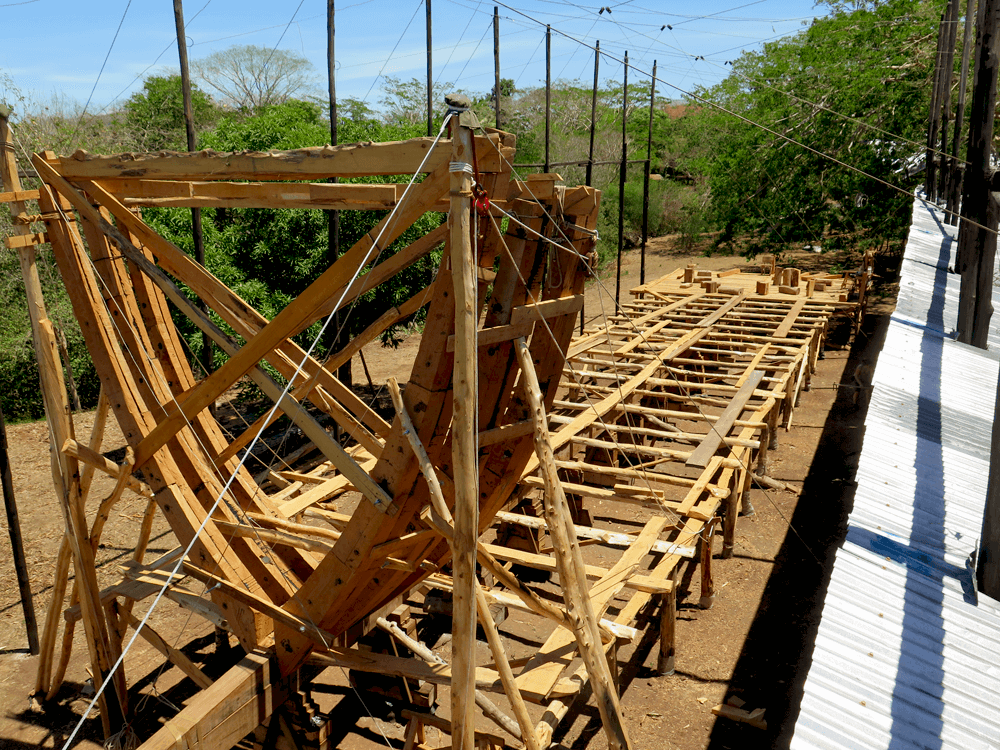

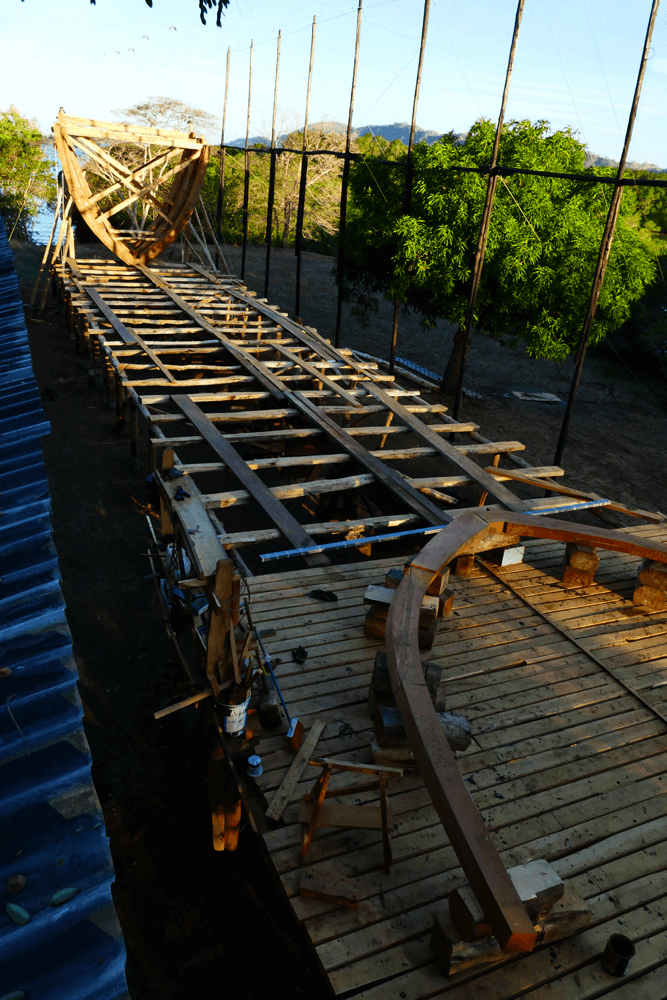

Next in line - aerial view of framing stage with the 4th frame (no.45), waiting to be completed and raised behind the first 3 frames already in place. Photo by Danielle Doggett
